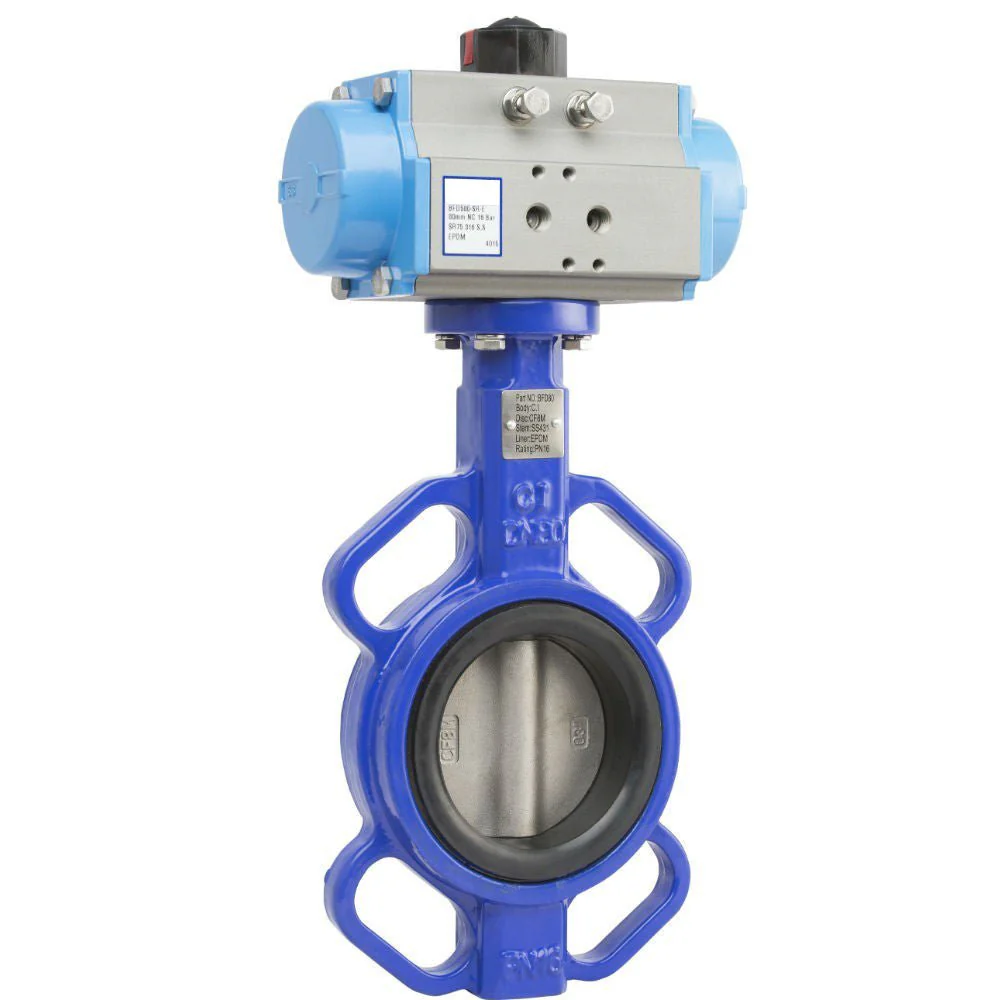

GO CI Body 316 SS Disc EPDM Liner BFDSR Butterfly Valves Actuated Spring Return Pneumatic
The BFD series has a cast iron body, 316 S.S disc, EPDM seat and a spring return pneumatic actuator making it suited to a wide range of industrial applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality spring return (rack and pionion design) anodised aluminium pneumatic actuator. This enables a fail safe position if air should be lost. The unique bonded catridge design of the butterfly valve gives it a longer life span, allows vacuum to be run through it and enables the seat to be replaceable if ever the need should arise.
The BFD series has a cast iron body, 316 S.S disc, EPDM seat and a spring return pneumatic actuator making it suited to a wide range of industrial applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality spring return (rack and pionion design) anodised aluminium pneumatic actuator. This enables a fail safe position if air should be lost. The unique bonded catridge design of the butterfly valve gives it a longer life span, allows vacuum to be run through it and enables the seat to be replaceable if ever the need should arise.
Original: $183.50
-65%$183.50
$64.22Description
The BFD series has a cast iron body, 316 S.S disc, EPDM seat and a spring return pneumatic actuator making it suited to a wide range of industrial applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality spring return (rack and pionion design) anodised aluminium pneumatic actuator. This enables a fail safe position if air should be lost. The unique bonded catridge design of the butterfly valve gives it a longer life span, allows vacuum to be run through it and enables the seat to be replaceable if ever the need should arise.
