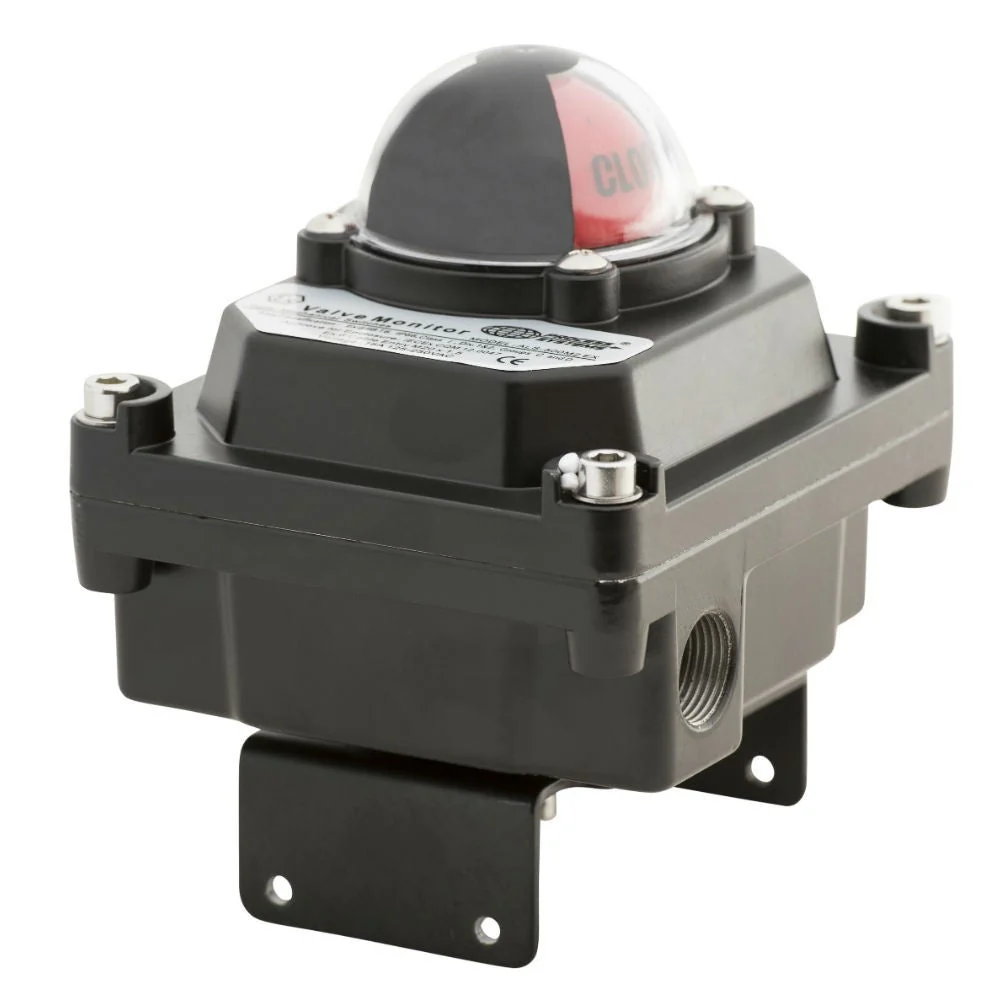

GO EXD IECEX Limit Switch Box for Pneumatic Actuator

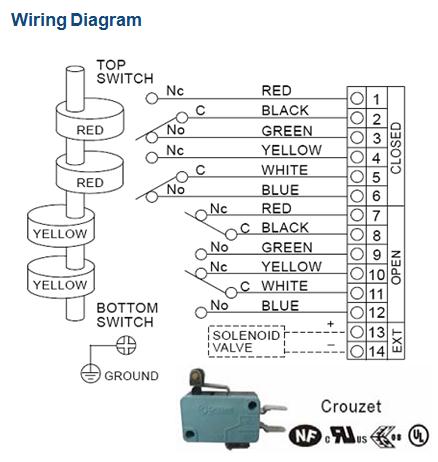

Our hazardous area limit switch box is designed to mount onto the top of pneumatic actuators to give position feedback. Four adjustable SPDT mechanical switches (two for open and two for closed) are wired into a terminal block. It also has termination for a solenoid valve so that a single multiple cable can be used. The solenoid can then be wired through the second conduit entry.
Our hazardous area limit switch box is designed to mount onto the top of pneumatic actuators to give position feedback. Four adjustable SPDT mechanical switches (two for open and two for closed) are wired into a terminal block. It also has termination for a solenoid valve so that a single multiple cable can be used. The solenoid can then be wired through the second conduit entry.
Original: $168.20
-65%$168.20
$58.87Description
Our hazardous area limit switch box is designed to mount onto the top of pneumatic actuators to give position feedback. Four adjustable SPDT mechanical switches (two for open and two for closed) are wired into a terminal block. It also has termination for a solenoid valve so that a single multiple cable can be used. The solenoid can then be wired through the second conduit entry.
