GRACO 255061 Air Valve Repair Kit for Husky 2150 Stainless Steel
Graco's factory air valve service kit for the Husky 2150 stainless steel air-operated double diaphragm pump (model DVD311 and any 2150 configuration with a stainless steel centre housing, identified by a V in the second digit of the model code, e.g. DV4, DVD, DVP, DVR).

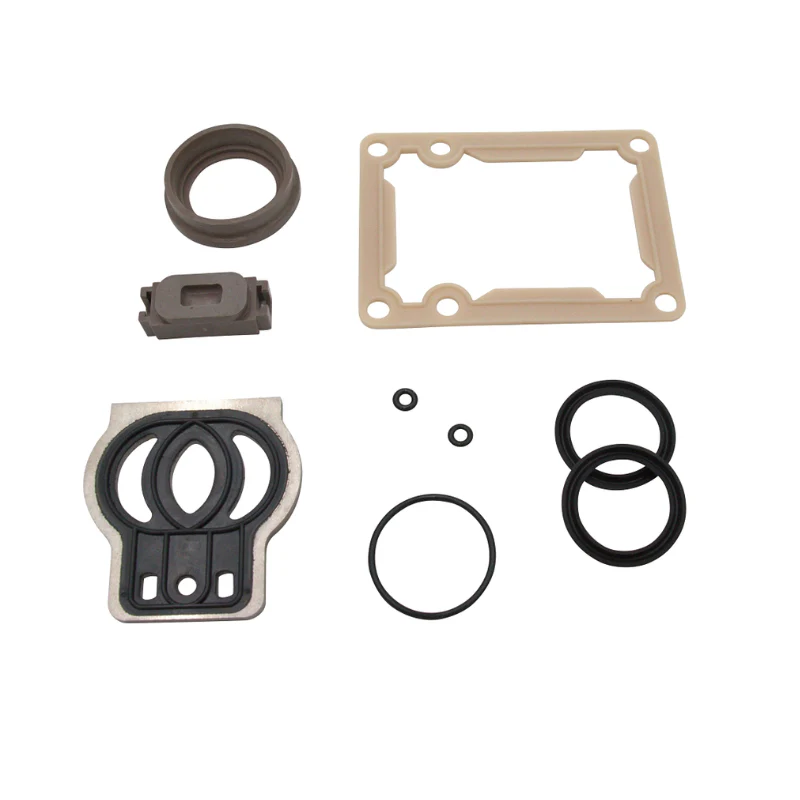

Kit 255061 refreshes the complete air valve cartridge in one service: pilot block, air valve block, stainless steel air valve plate, cover gasket, three o-rings, and two u-cup packings. Fit it on first scheduled service of a Husky 2150 SS, or any time the pump cycles unevenly, stalls under load, leaks air from the muffler cover, or ices up on cold air supply.
This is the only air valve repair kit specified by Graco for stainless steel centre housing 2150 pumps. Aluminium centre housing 2150 pumps use kit 236273 instead. Contact us if you need help confirming which kit fits your pump.
Who it's for: maintenance teams running Husky 2150 SS pumps on chemicals, solvents, food-grade product, or any application that picked the stainless option originally.
Who it's not for: aluminium centre housing 2150 pumps (use 236273), or Husky pumps in any other size (1050, 1590, 2200, 3300 etc. each use their own AVRK).
